Full Automatic 890 Profile Roof Trapezoidal Sheet Forming Machine With PLC Control System

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Model NO : 890 roll forming machine

Certification : CE, SGS

Customized : Customized

Cutting Method : Servo Electric Shear

Transmission Mode : One Inch Chain Drive

Tile Type : Colored Steel

Main Motor Power : 7.5kw

Transport Package : Plastic Film & Steel Wire Fixed

Contact Now

Full Automatic Trapezoidal 890 Profile IBR Roof Sheet Machine Roll Forming Machine
Product Overview
This advanced roll forming machine is designed for high-efficiency production of trapezoidal 890 profile IBR roof sheets, featuring fully automatic operation and robust construction for continuous manufacturing applications.
Key Features
Heavy-Duty Machine Frame
The entire machine frame is constructed from high-strength I-beams and premium steel sections, ensuring robust and durable performance. The 890 type roll forming machine typically uses 250# I-beams, providing exceptional load-bearing capacity and long-term stability. This heavy-duty construction effectively supports all components, minimizes vibration during operation, and guarantees smooth, precise forming performance even under continuous production conditions.
Advanced Hydraulic System
Equipped with a high-performance hydraulic system featuring both profiling and shearing hydraulic cylinders:
  • The profiling hydraulic cylinder precisely drives forming molds for accurate metal sheet shaping
  • The shearing hydraulic cylinder controls cutting blades for clean, fast, and accurate cuts according to preset lengths
This dual-cylinder design ensures high efficiency, stable operation, and consistent product quality, making it ideal for large-scale production.
Intelligent PLC Control System
The PLC control system serves as the core of the machine, enabling fully automatic operation. Through advanced programming integration, the system processes signals from various sensors including pulse encoders and limit switches. It precisely controls motors, hydraulic solenoid valves, and other key components according to preset parameters, ensuring accurate synchronization of forming, feeding, and cutting processes. This significantly improves production efficiency while reducing manual intervention and operational errors.
Technical Specifications
Model NO. 890
Condition New
Usage Roof, Wall
Feeding Width Φ1250mm
Machine Frame 350H steel frame
Forming Speed 0-40m/Min
Color Customized
Type of Driven Chain Transmission
Transmission Method Electric
Number of Rolling Mill Sets 16 row molding
Spindle Diameter Φ70mm (Solid shaft)
Customized Customized
Feeding Method Double hand rocking feeding rack
Specification Φ9000mm*Φ1300mm*Φ1400mm (L*W*H)
Origin Cangzhou, Hebei
Product Gallery

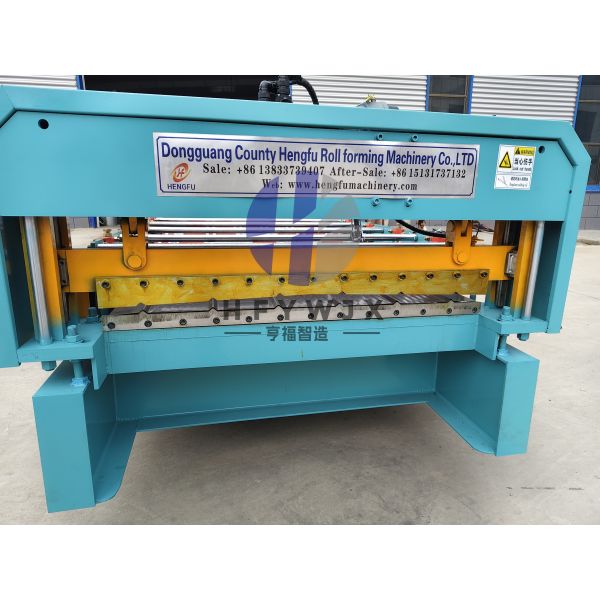

Full Automatic 890 Profile Roof Trapezoidal Sheet Forming Machine With PLC Control System Full Automatic 890 Profile Roof Trapezoidal Sheet Forming Machine With PLC Control System Full Automatic 890 Profile Roof Trapezoidal Sheet Forming Machine With PLC Control System
Frequently Asked Questions
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Can the machine produce curved or irregularly shaped panels?
Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
