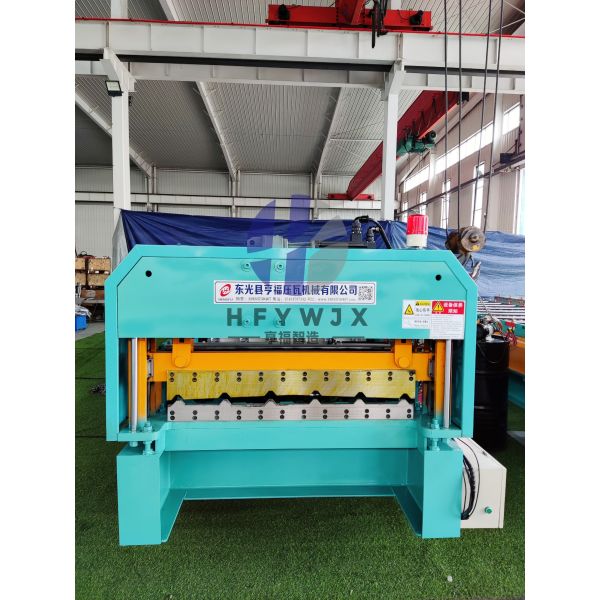

Trapezoidal Roll Forming Machine with High Precision and Stable Performance
The 1000mm Trapezoidal Roofing Sheet Roll Forming Machine is a highly efficient and versatile solution designed for producing high-quality metal roofing and wall panels. It processes materials such as color steel, galvanized steel, and coated coils, delivering precise trapezoidal profiles with excellent surface finish.
With a feeding width around 1219mm, the machine ensures optimal material utilization while producing durable and weather-resistant panels widely used in steel structure buildings and industrial construction.

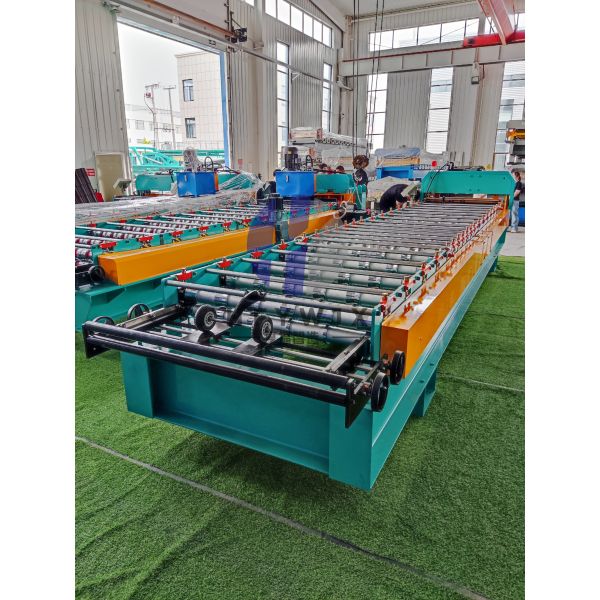

Robust Construction & Precision Engineering
Equipped with a strong 350H steel frame and 13 forming stations, the machine provides outstanding rigidity and forming accuracy during continuous operation. The Φ70mm solid shaft combined with high-quality rollers ensures smooth material feeding and stable shaping performance.
This structural design effectively minimizes deformation and guarantees consistent panel dimensions, making it suitable for long-term, high-volume production.
Performance & Customization
The machine operates at a forming speed of approximately 12-15 meters per minute, balancing productivity and precision. The chain-driven transmission system ensures stable power delivery, while the electric control system allows reliable and continuous operation.
Its design supports customizable profiles, enabling manufacturers to meet diverse project requirements in roofing and cladding applications.

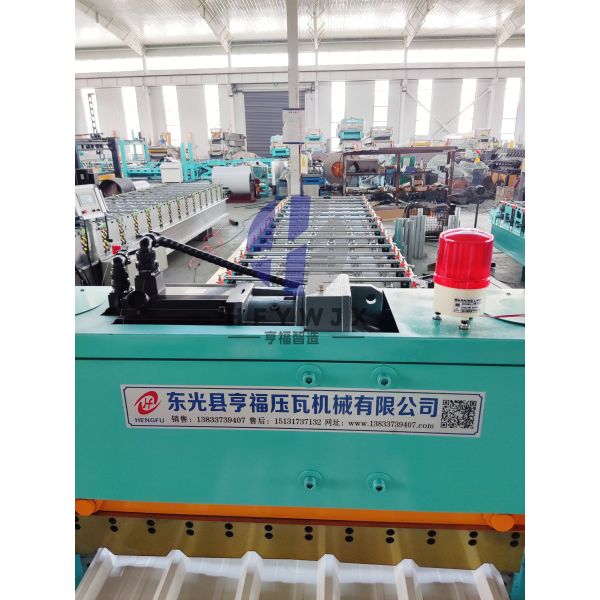

Advanced Cutting System
The machine is integrated with a hydraulic cutting system using guide post shearing technology, ensuring accurate, clean cuts with minimal burrs. This improves the final product quality and reduces the need for additional processing.
The complete production line—from feeding to forming and cutting—works seamlessly, enhancing efficiency and reducing material waste in industrial manufacturing environments.
Manufacturer Quality
Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this equipment demonstrates strong technical expertise and dependable quality standards. The company is well recognized for its advanced manufacturing capabilities, strict quality control, and professional service support.
With advantages such as stable performance, high precision, and long service life, this trapezoidal roll forming machine is an ideal choice for customers aiming to improve productivity and competitiveness in the metal roofing industry.
Technical Specifications
| Model NO |
1000 |
| Condition |
New |
| Usage |
Roof |
| Feeding Width |
1219mm |
| Machine Frame |
350H steel frame |
| Forming Speed |
12-15M/min |
| Color |
Customized |
| Type of Driven |
Chain drive |
| Transmission Method |
Electric |
| Number of Rolling Mill Sets |
13 row molding |
| Spindle Diameter |
Φ70mm (Solid shaft) |
| Customized |
Customized |
| Feeding Method |
Two-hand crank feeder (with pressure roller) |
| Specification |
6500mm x 1600mm x 1700mm |
| Origin |
Cangzhou, Hebei |
| Warranty |
1 year |
| Usage |
Building |
Frequently Asked Questions
What is the difference between your machines and cheaper alternatives?
- The machine frame is thicker and will not deform even after prolonged use
- The rollers feature high precision, ensuring a standard and consistent panel profile
- The cutting system is stable, guaranteeing precise length accuracy
- It boasts a low failure rate and low maintenance costs
- It offers a significantly longer service life
What are the available cutting methods?
- Hydraulic Flying Shear
- Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can it be integrated into a complete color steel production line?
Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
