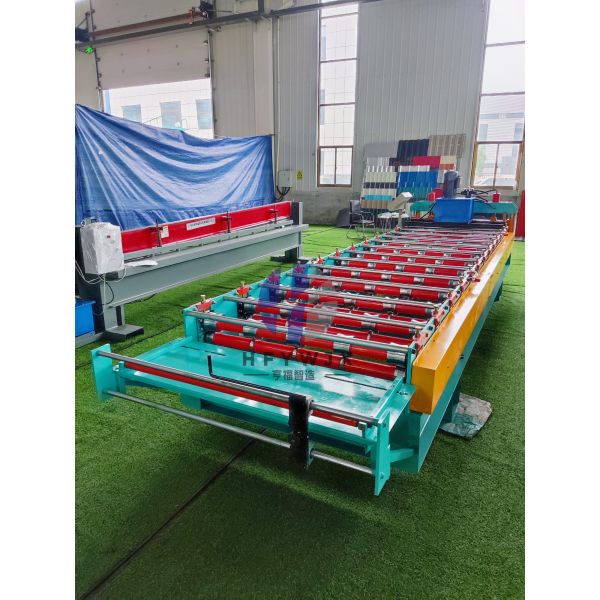

Automatic 1040 Trapezoidal Metal Roofing Sheet Roll Forming Machine
The Automatic 1040 Trapezoidal Metal Roofing Sheet Roll Forming Machine is a high-efficiency solution engineered for producing durable and precisely shaped metal roofing panels. Designed to process color steel and galvanized materials, it delivers consistent trapezoidal profiles with excellent surface finish. With a feeding width of around 1200mm, the machine ensures optimal material utilization while meeting the demands of modern construction and steel building projects.
Built with a strong 300H-350H steel frame and equipped with approximately 13 forming stations, the machine offers outstanding structural stability and precision forming performance. The Φ70mm solid shaft and high-quality roller materials ensure smooth operation, reduced deformation, and long-lasting durability. This robust configuration allows continuous production while maintaining accurate profile dimensions and high-quality output.
In terms of performance, the machine operates at a forming speed of about 10-15 meters per minute, providing a balanced combination of efficiency and precision. The chain-driven transmission system guarantees stable power delivery, while the fully automated operation improves productivity and reduces manual labor. Its flexible design also allows customization of profiles to meet different market requirements.
The cutting system adopts a four-column guide hydraulic shearing method, ensuring clean, accurate cuts with minimal burrs. This enhances the final product quality and reduces the need for secondary processing. The complete production line—from feeding to forming and cutting—works seamlessly, delivering a smooth workflow and improving overall production efficiency.
Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this equipment reflects advanced engineering and strict quality standards. The company is recognized for its strong R&D capabilities, reliable machine performance, and comprehensive after-sales support. With advantages such as high precision, stable operation, and low maintenance cost, this 1040 trapezoidal roll forming machine is a professional and dependable choice for customers aiming to enhance productivity and competitiveness in the metal roofing industry.
Technical Specifications
| Model NO |
1040 |
| Condition |
New |
| Usage |
Roof |
| Feeding Width |
1200mm |
| Machine Frame |
300H steel frame |
| Forming Speed |
10-15M/min |
| Color |
Customized |
| Type of Driven |
Chain drive |
| Transmission Method |
Electric |
| Number of rolling mill sets |
13 row molding |
| Spindle diameter |
Φ70mm (Solid shaft) |
| Customized |
Customized |
| Feeding method |
Iron plate feeding rack |
| Specification |
7000mm x 1300mm x 1500mm |
| Origin |
Cangzhou, Hebei |
| Warranty |
1 year |
| Usage |
Building |
Frequently Asked Questions
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Can the machine produce curved or irregularly shaped panels?
Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
