The Profile Wall Cladding Panel Roll Forming Production Line is a fully integrated system designed for the continuous, high-precision manufacturing of metal wall cladding panels used in industrial, commercial, and architectural buildings. It seamlessly combines decoiling, material guiding, roll forming, servo cutting, and intelligent control into a single automated workflow. This integration eliminates manual intervention, optimizes production efficiency, and ensures consistent product quality, making it an essential tool for modern metal cladding manufacturers.
The production line features a heavy-duty steel frame with reinforced welding joints, ensuring long-term stability and resistance to mechanical stress under continuous operation. The roll forming section is equipped with high-accuracy hardened rollers, which precisely shape metal sheets into standardized cladding profiles with tight dimensional tolerances and smooth surface finishes. The servo cutting system, driven by high-torque motors and precision linear guides, delivers clean, burr-free cuts with minimal material waste, further enhancing production efficiency.

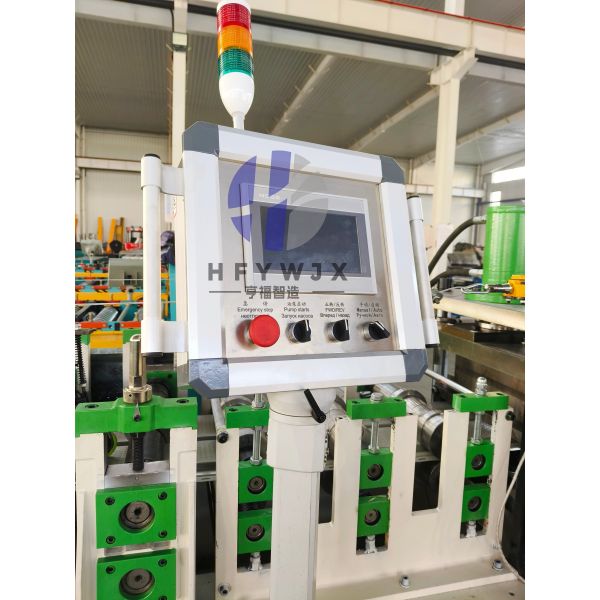

Controlled by an industrial-grade PLC system with a color touch screen interface, the line enables real-time monitoring and precise adjustment of key parameters such as forming speed, cutting length, and material feeding rate. This intelligent system ensures stable operation and rapid response to process variations. Additionally, the line supports full customization of panel profiles, thicknesses, and production speeds to meet diverse market demands. Manufacturers can quickly adapt to different project specifications by adjusting forming rollers and programming control parameters.
This production line is ideal for manufacturers, construction companies, and metal building suppliers seeking reliable, high-efficiency solutions for metal wall cladding production. It is widely applicable in large-scale projects such as industrial warehouses, commercial shopping centers, and architectural facades. By enabling high-volume, low-cost manufacturing with exceptional product consistency, the line helps businesses reduce labor intensity, accelerate project timelines, and deliver superior quality cladding systems to end clients. Its modular design and compact footprint also facilitate easy installation and maintenance.
| Roll forming part |
| Frame structure |
Vertical arched frame structure, 35-45 mm thick;
Structure welded from annealed profile steel, base surface requires milling treatment, welded with 350# H-beam steel, and treated with anti-rust treatment after welding;
Side punching device with rotating punching roller and scrap ejection mechanism. |
| Number of forming rows |
22rows |
| Wall panel thickness |
20mm |
| Material feeder |
Two-hand crank feeder with pull cutter |
| Transmission method |
Gear drive |
| Rolling speed |
25 meters/minute |
| Cutting device type |
Hydraulic shears |
| Hydraulic pump power |
4 kW |
| Tool material |
45# steel, surface treated with hard chrome plating. |
| Punching section |
| Frame |
Independent frame |
| Feeding device |
Servo feeder |
| Feeding motor power |
1.5 kW (servo motor) |
| Material Loading Rack |
| Uncoiler |
3 tons |
| Loosening/Clamping Mechanism |
Shaft segment loosening: Manual |
| Main Drive Power |
2.2 kW |
FAQ
Q:How many people are required to operate the machine?
A:It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Q:How long is the warranty period?
A:The entire machine comes with a 12-month warranty, excluding wear parts.
Q:Will the machine scratch the surface coating of the color-coated steel sheets during production?
A:With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
Q:Is the length of the discharge rack adjustable?
A:Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
Q:How should the machine be stored when not in use for an extended period?
A:Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
