310mm Feeding Width Ridge Cap Roll Forming Machine High Precision For Roofing Solutions

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Model NO. : 310 Ridge tile machine

Certification : CE, SGS

Customized : Customized

Transmission Method : Electric

Stability : Strong Stability

Maintain : Easy Maintenance

Specification : about 6000mmx1300mmx1400mm

HS Code : 8474801000

Tile Type : Colored Steel

Condition : New

Usage : Roof

Precision : High Precision

Degree of Difficulty : Easy to Operate

Transport Package : Plastic Film & Steel Wire Fixed

Origin : Dongguang County, Cangzhou, Hebei Province

Production Capacity : 500pieces/Years

Contact Now

310 Ridge Cap Roll Forming Machine – High Precision, Durable, Efficient Performance for Roofing Solutions

This 310 ridge cap roll forming machine with automatic cutting is a highly efficient solution designed for producing metal ridge caps used in modern roofing systems. It is specifically engineered to process galvanized steel and color-coated sheets into precise ridge profiles that ensure excellent waterproofing, structural integrity, and aesthetic finishing at the roof peak.

With a feeding width of 310 mm, the machine is ideal for standardized roofing applications and delivers consistent, high-quality output. The machine features a robust structure built with a heavy-duty 350H steel frame, ensuring long-term stability and reliable performance during continuous operation.

Equipped with 14 forming stations and solid 70 mm shafts, it provides excellent forming accuracy and maintains consistent shape quality across every finished product. The chain-driven transmission system further enhances durability while supporting smooth and stable production at speeds up to 0-8 m/min.

Automation is a key advantage of this equipment. It adopts an advanced PLC control system combined with a user-friendly touch screen interface, allowing operators to easily set parameters such as production speed and cutting length. The automatic hydraulic cutting system ensures clean, burr-free cuts after forming, reducing material waste and improving overall production efficiency while minimizing manual intervention.

Technical Specifications
Raw Material Galvanized plate, color steel plate
Feeding Width 310mm
Rolling Thickness 0.8mm
Production Rate 8M/min
Place of Origin Cangzhou, Hebei Province
Machine Frame 350H steel frame
Warranty 1 year
Dimension (L*W*H) about 6000mm x 1300mm x 1400mm
Cut Off System After forming, it is cut off and the four-column tie rod guide column is sheared (no burrs in shearing, and the maintenance rate is extremely low)
Usage Building
Electronic Control System Industrial computer PLC frequency conversion control, cutting length error ≤1mm
Roll Material Rough turning and fine turning of No. 45 steel, cylindrical grinding (the ribs are made of bearing steel)
Spindle Diameter Φ70mm (solid shaft)

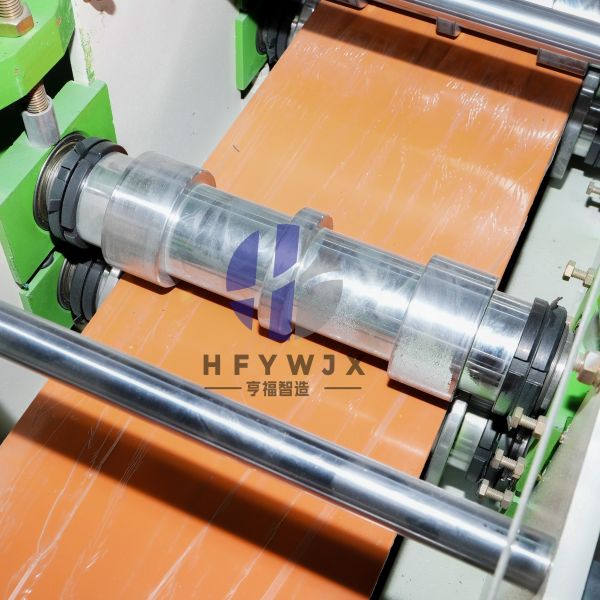

Product Gallery
310mm Feeding Width Ridge Cap Roll Forming Machine High Precision For Roofing Solutions 310mm Feeding Width Ridge Cap Roll Forming Machine High Precision For Roofing Solutions 310mm Feeding Width Ridge Cap Roll Forming Machine High Precision For Roofing Solutions 310mm Feeding Width Ridge Cap Roll Forming Machine High Precision For Roofing Solutions
Frequently Asked Questions
How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

Will the machine scratch the surface coating of the color-coated steel sheets during production?

With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.

Is the electrical system susceptible to moisture damage?

The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.

Can the machine produce curved or irregularly shaped panels?

Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
