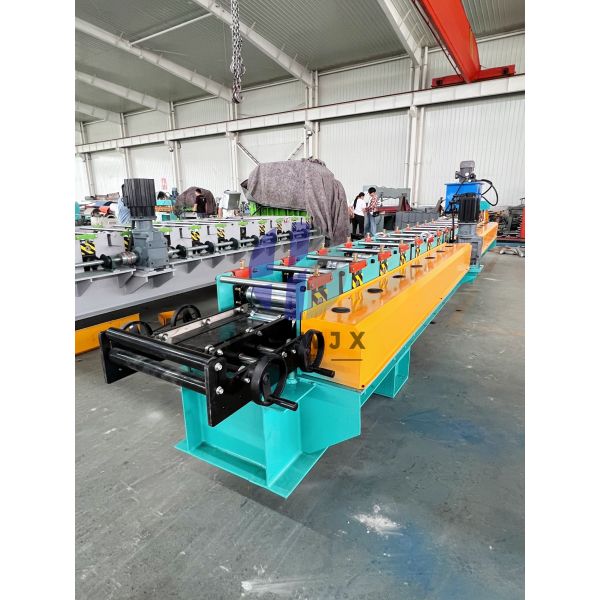

Advanced 460 Ridge Tile Machine Automatic Steel Roof Cap Cold Roll Former
Dongguang Hengfu Roll Forming Machine Co., Ltd. brings a professional and reliable Ridge Cap Roll Forming Machine, specially designed for high-quality metal roofing accessory production. With years of focused R&D and manufacturing experience in roll forming equipment, the company has created a machine that balances stability, efficiency, and precision, making it highly popular among roofing manufacturers, construction enterprises, and international distributors. This model is built to deliver consistent, high-standard ridge caps that enhance roof tightness, appearance, and service life.
The machine adopts a heavy-duty welded frame with overall stress-relief treatment, ensuring excellent rigidity and minimal deformation even under long-term high-speed operation. The forming rollers are made of high-quality alloy steel with fine machining and hard chrome plating, allowing smooth forming of galvanized steel, color-coated sheets, Aluzinc, and aluminum coils. It effectively avoids surface scratches, edge warping, or profile distortion, producing ridge caps with precise dimensions, elegant lines, and perfect matching with various roof panel systems.

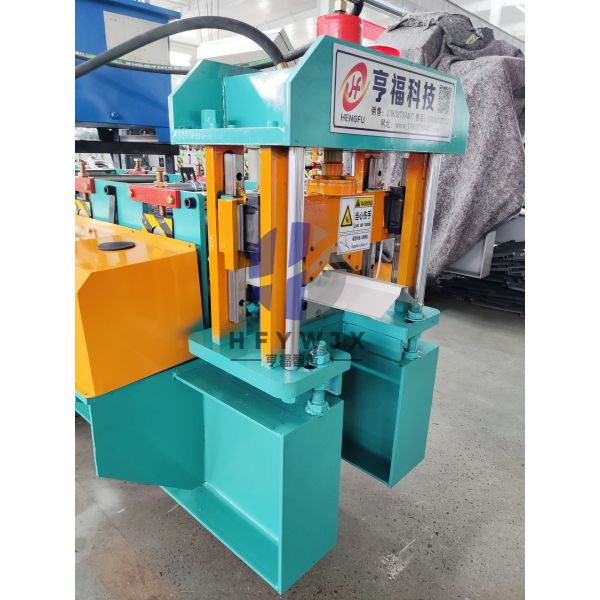

Featuring a fully automatic PLC control system and servo-driven cutting system, this ridge cap machine achieves accurate length control, stable feeding, and continuous automatic production. The human-machine touchscreen allows quick parameter setting, easy operation, and low requirements for operator experience. With adjustable forming speed and high production efficiency, it greatly reduces labor input and material waste, helping factories improve output while maintaining consistent product quality.
As a direct and professional manufacturer, Dongguang Hengfu Roll Forming Machine Co., Ltd. implements strict quality inspection in every process, from component selection to final assembly and testing. The machine uses well-known branded electrical and transmission parts for enhanced durability and reduced downtime. Customized profile designs are available based on customer requirements, supported by professional installation guidance, technical training, and responsive after-sales service.
This ridge cap roll forming machine is widely recognized for its robust structure, easy maintenance, and cost-effective performance. It is suitable for both small-scale processing workshops and large-scale automated production lines. By choosing this Hengfu machine, customers gain a high-performance production solution that ensures long-term stable operation, improved product quality, and stronger market competitiveness.
Technical Specifications
| Model NO |
460 Ridge tiles |
| Machine frame |
350H steel frame |
| Motor |
4kW or 5.5kW oil pump motor |
| Wall panel thickness |
14mm wall panels |
| Type of Driven |
Chain drive |
| Number of rolling mill sets |
16-row molding |
| Spindle diameter |
70 shafts |
| Shear power |
5.5kW servo drive |
| Wheels |
45# wheels |
| Usage |
Roof |
| Specification |
6000mmx1300mmx1400mm |
| Origin |
Cangzhou, Hebei |
| Warranty |
1 year |
Frequently Asked Questions
What are the available cutting methods?
Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Can the machine produce curved or irregularly shaped panels?
Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
