Storage Shelf Forming Machine Fully Automatic Warehouse Rack Roll Forming Line
The Storage Warehouse Shelf Racking Making Machine is designed to deliver efficient and precise production for a wide range of storage rack profiles. By integrating feeding, punching, roll forming, and cutting into a continuous line, it simplifies the manufacturing process and significantly improves overall productivity. This makes it an ideal solution for companies involved in warehouse systems, logistics infrastructure, and retail shelving production.
A standout feature of this machine is its ability to ensure consistent quality across every finished profile. The roll forming stations are engineered to provide smooth shaping and accurate dimensions, resulting in products that meet strict industry standards. This consistency helps manufacturers reduce rejection rates and build a stronger reputation for quality in competitive markets.
The machine also offers excellent operational efficiency. With automated control and optimized production flow, it minimizes manual intervention while maintaining stable performance. This not only saves labor costs but also allows operators to focus on monitoring and optimizing production, making day-to-day operations more streamlined and manageable.
Dongguang Hengfu Roll Forming Machine Co., Ltd. has leveraged its deep industry knowledge to create equipment that meets real-world production needs. The company is recognized for its dependable machinery, practical design approach, and commitment to customer satisfaction, providing tailored solutions and reliable support to clients worldwide.
Choosing this machine means investing in both performance and peace of mind. With the backing of Dongguang Hengfu Roll Forming Machine Co., Ltd., customers benefit from a trusted partner that helps improve production efficiency, maintain high product standards, and support long-term business success in the storage equipment industry.
Technical Specifications
| Model NO |
Storage shelf forming machine |
| Condition |
New |
| Automatic Grade |
Automatic |
| Working Speed |
8-11m/min |
| Spindle diameter |
Φ80 |
| Number of rolling mill sets |
14 row molding |
| Maximum cutting width |
200mm |
| Production discharge speed |
0-10m/min |
| Transmission mode |
The motor drives the reducer and then drives the gear transmission |
| Specification |
18000mm*1500mm*1500mm |
| Rolling material |
Q235 galvanized sheet |
| Weight of load-bearing steel strip |
3.0 tons |
| Structural form |
integral tension structure |
| Rack |
Made of steel welded square tube rack |
| Control System |
PLC |
| Customized |
Customized |
| Origin |
Cangzhou, Hebei |
| Transport Package |
Plastic Film & Steel Wire Fixed |
| HS Code |
8455221000 |

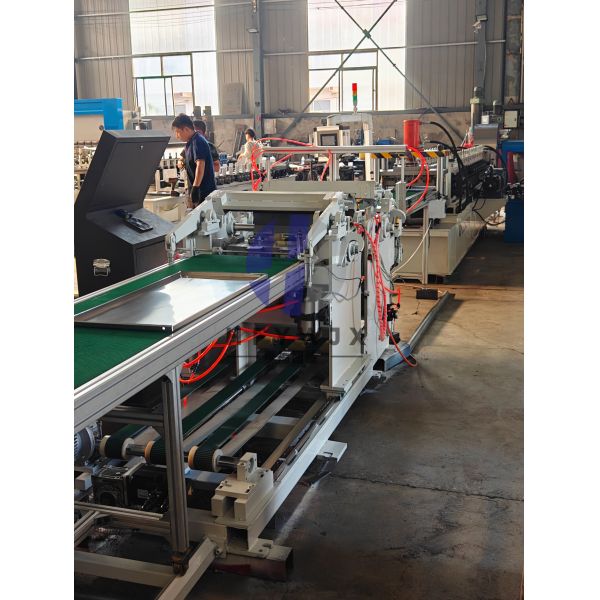

Product Images
Frequently Asked Questions
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
Will the machine scratch the surface coating of the color-coated steel sheets during production?
With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
