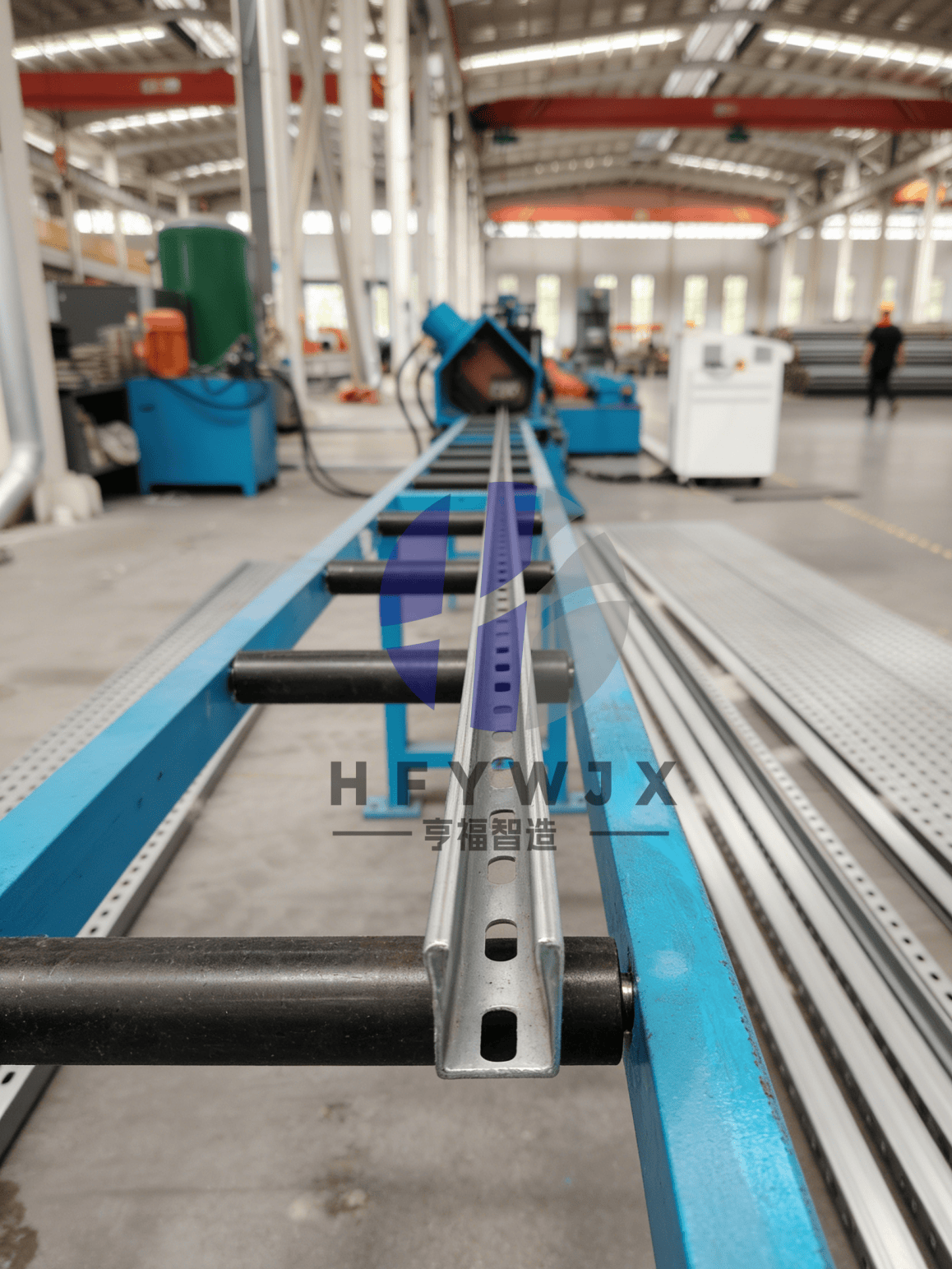

PV Solar Rack Roll Forming Machine
The Automatic Solar Mounting System Photovoltaic Bracket Forming Machine is a purpose-built solution for manufacturing essential components used in solar panel installation systems. It converts metal coils into precisely shaped mounting brackets that ensure secure and stable support for photovoltaic structures. Designed for modern production needs, the machine helps manufacturers keep up with the rapid expansion of the renewable energy industry.
What sets this machine apart is its ability to deliver both speed and accuracy in a single production line. The advanced roll forming system works in coordination with precise punching units, ensuring that every bracket meets exact technical specifications. This level of accuracy is critical for solar projects, where proper alignment and structural integrity directly impact installation efficiency and long-term performance.
The equipment also emphasizes operational convenience. With an intelligent control system, operators can easily manage production settings, switch between product specifications, and monitor performance in real time. This user-friendly approach reduces training time and allows businesses to quickly integrate the machine into existing production lines.
Dongguang Hengfu Roll Forming Machine Co., Ltd. has developed this equipment with a deep understanding of industry demands. Their focus on practical engineering, stable machine performance, and efficient customization enables customers to achieve reliable production results. The company's strong technical support further ensures smooth operation and long-term customer satisfaction.
For manufacturers aiming to strengthen their position in the solar energy supply chain, this machine offers a powerful combination of efficiency, precision, and flexibility. With Dongguang Hengfu Roll Forming Machine Co., Ltd. as a trusted partner, customers can confidently enhance their production capacity and meet the evolving needs of global photovoltaic projects.
Technical Specifications
| Material |
galvanized sheet 2.0mm-2.5mm |
| Machine frame |
box welding frame |
| Wall panel |
T=55mm archway style |
| Number of roller groups |
24 groups of main rollers |
| Roll material |
CR12 precision turning and hard chrome plating |
| Spindle material |
45# high quality steel tempered |
| Spindle diameter |
Φ80mm solid shaft |
| Transmission mode |
gearbox transmission |
| Production speed |
8m-50m/minute |
| Hydraulic shearing power |
11kw large valve blade pump station |
| Cutting |
Hydraulic twisting and shearing without stopping the machine |
| Cutting mold |
cut with two blades, Cr12 quenching treatment, HRC58-60 |
| Electronic control system |
Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control |
| Overall dimensions |
length 2250, width 1250, height 1400 |
Frequently Asked Questions
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
Will the machine scratch the surface coating of the color-coated steel sheets during production?
With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
