Precise 3KW Laser Welded Square Pipe Roll Forming Machine Adjustable Speed

Name: Precise 3KW Laser Welded Square Pipe Roll Forming Machine Adjustable Speed
Brand: HENGFU
Price: 1 USD

Wholesale Precise 3KW Laser Welded Square Pipe Roll Forming Machine Adjustable Speed from china suppliers

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Tension Mode : Manual tensioning

Main Shaft of Uncoiler : Φ80 mm

Forming Frame Structure : 30 mm thick gantry type, CNC machined

Forming Stands : 55 stations

Production Speed : 1–15 m/min (PLC inverter adjustable)

Roller Material : Cr12 mould steel, HRC55–58

Roller Shaft : 45# steel, Φ60 mm

Bearing : Harbin Bearing

Main Motor : 4 sets × 5.5 KW three-phase motor

Transmission : Motor + reducer + gearbox

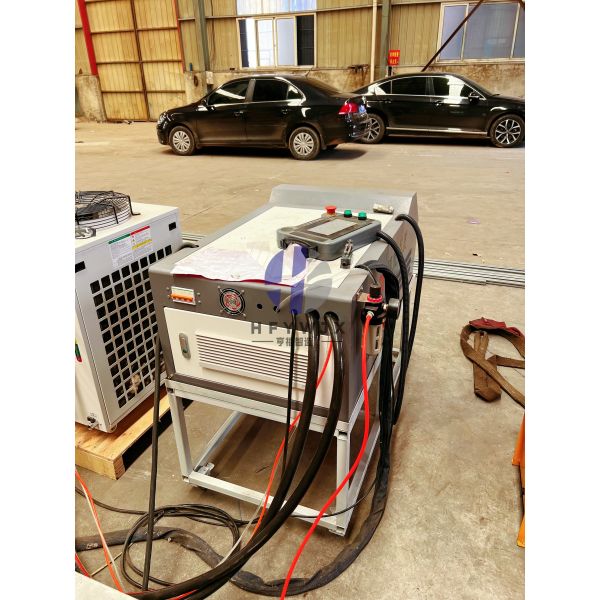

Laser Welder : 3 KW high-end split type

Contact Now

Ultra Precise Laser Welded Pipe Machine Automatic Stainless Steel Tube Mill

Dongguang Hengfu Roll Forming Machine Co., Ltd. takes pride in launching its fully automatic laser welded pipe production line, a high-end integrated solution for modern metal pipe manufacturing. With professional design, strict fabrication, and reliable performance, this equipment represents the company's strong technical strength and quality commitment.

This production line adopts a streamlined and efficient process: automatic feeding, roll forming, laser welding, straightening, and non-stop cutting. Optimized for 0.6mm galvanized steel coils, it ensures stable material running, uniform forming, and high-quality welding.

Key Features

The feeding unit uses a heavy-duty integrated tension structure with 2.0 tons loading capacity. The main forming machine is built with a 30mm thick gantry frame processed by CNC milling for exceptional rigidity and precision. Fitted with a 3KW high-configuration laser welding system and intelligent PLC touch screen control, this line delivers stable welding quality and easy operation.

Technical Specifications

Material	Galvanized steel, 0.6 mm thickness
Process Flow	Decoiling -> Forming -> Welding -> Straightening -> Non-stop cutting
Uncoiler	Manual tension; 2.0 tons load capacity; max width 400 mm; inner diameter Φ500
Forming Stands	55 stations
Roller Material	Cr12 mould steel, HRC55-58
Speed	1-15 m/min (PLC inverter adjustable)
Laser Welder	3 KW high configuration
Control System	PLC + touch screen
Dimension	approx. 25 m × 1.5 m × 1.5 m

Product Gallery

Precise 3KW Laser Welded Square Pipe Roll Forming Machine Adjustable Speed

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can machines be customized according to our drawings?

Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.

What is the structure of the machine frame?

It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
