Automatic Hydraulic Driven High-altitude Lifting Platform with 18.5m Lifting Height and 8t Capacity for Construction

Name: Automatic Hydraulic Driven Highaltitude Lifting Platform with 185m Lifting Height and 8t Capacity for Construction
Brand: HENGFU
Price: 1 USD

Wholesale Automatic Hydraulic Driven High-altitude Lifting Platform with 18.5m Lifting Height and 8t Capacity for Construction from china suppliers

Application : High Altitude Lifting Platform

Lift Mechanism : Telescoping Lift

Carrying Capacity : Weight Level

Moves : Moving

Driven Type : Hydraulic

Running Mode : Vehicular

Feature : Easy to Operate

Certification : SGS

Electrical Control : Computer Control Cabinet

Lifting Capacity : 8t

Lifting Height : 18.5m

Transport Package : Container

Specification : 9500*2500mm*3400mm

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Contact Now

Automatic Lifting Construction High-altitude Lifting Platform

Product Overview

The High Altitude Roll Forming Machine platform is an innovative construction solution designed to integrate tile pressing equipment with a lifting system. It securely fixes high-altitude tile pressing machinery on the lifting platform, enabling the equipment to be elevated to high-altitude work areas for on-site operation.

This high-altitude lift construction platform is purpose-built for steel structure factory construction projects, with its primary function being the on-site installation of roof tiles for steel structure workshops. It solves the pain points of traditional construction methods by bringing the tile pressing process directly to the roof.

By mounting the tile pressing equipment on the lifting platform and elevating it to high altitude, the platform realizes on-site high-altitude tile pressing. The pressed tiles can be directly overlapped and installed by workers on the factory roof, eliminating the need for repeated transportation of tile pressing machines and crane loading of finished tiles.

This solution effectively addresses multiple construction inconveniences, including frequent equipment handling, tile damage during transportation, and material waste. It significantly reduces labor costs, saves raw material consumption, avoids material waste, minimizes construction safety risks, and ultimately improves the overall economic benefits of the project.

Technical Specifications

Model NO	18.5m high altitude lifting platform
Condition	New
Lifting Height	18.5m
Suitable for Press Molding Machine	All Jiaochi series and roof panel forming machines, motors, reducer drives, hydraulic shearing
Carrying Capacity	Weight Level
Lifting Capacity	8 tons
Running Mode	Moving
Moves	Vehicular
Transport Package	Container
Required Voltage and Power	380V, 11KW
Production Capacity	400Set/year
Customized	Customized
Origin	Cangzhou, Hebei
Warranty	1 year
Board Materials for Roofs and Wall Panels	Color steel plate, galvanized plate, aluminum plate

Product Gallery

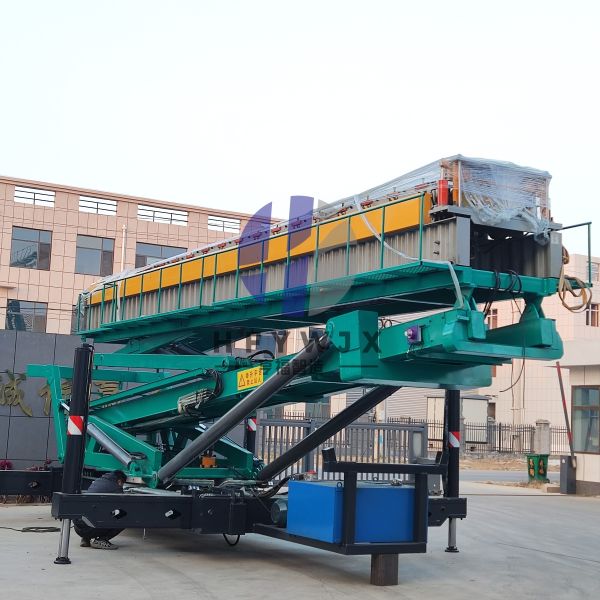

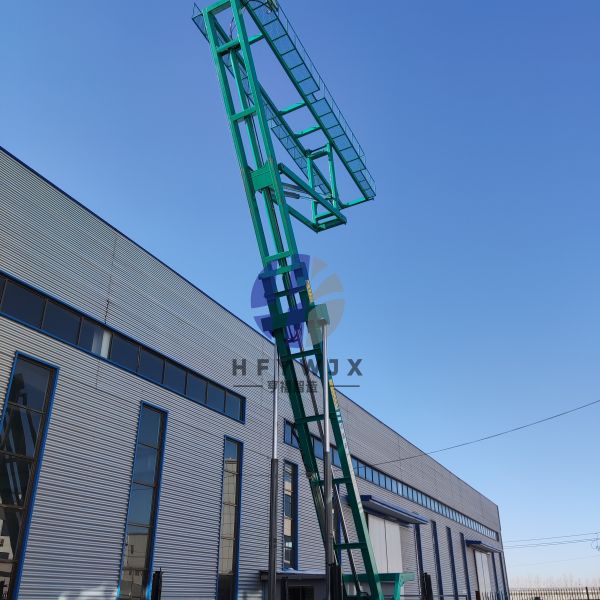

Automatic Hydraulic Driven High-altitude Lifting Platform with 18.5m Lifting Height and 8t Capacity for Construction

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

Do you have customers for your equipment in our country?

Yes, we have established customers in the Middle East, North Africa, and various European countries.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

What are the available cutting methods?

Hydraulic Flying Shear and Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
