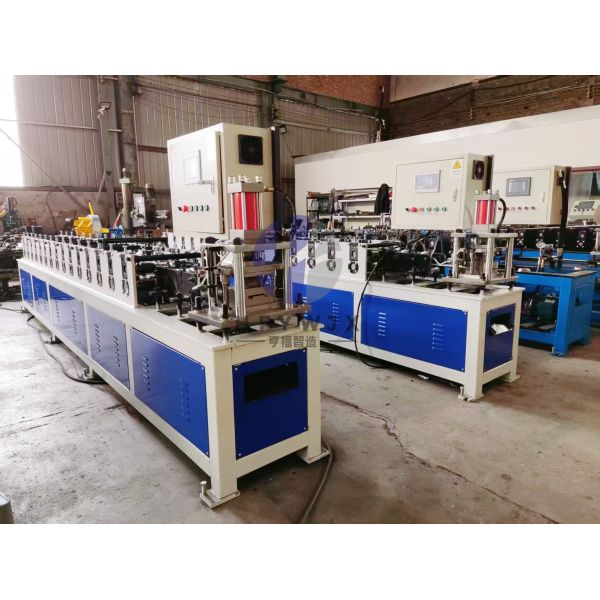

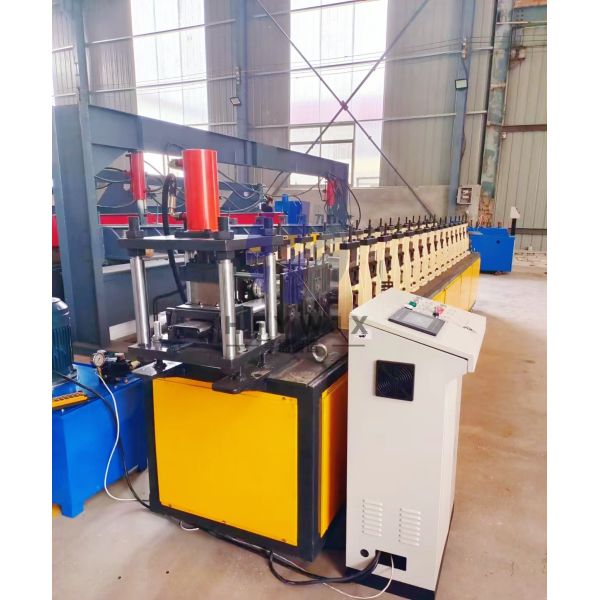

The Roller Shutter Door Roll Forming Machine is a specialized, high-performance production line built exclusively for the door manufacturing and construction sectors. Designed for continuous, efficient operation, it produces premium roller shutter door profiles, offering modern workshops a fully automated and reliable solution to meet growing market demands.
Built with industrial-grade durability in mind, the machine features a robust frame constructed from 80×80 square tubes, paired with 15 forming stations for consistent molding. Critical components include a 16mm thick wall plate and Φ50mm solid 45# steel main shafts, delivering exceptional rigidity that withstands long hours of high-intensity production.
Its power and drive system ensures smooth, stable operation, utilizing a reliable gear transmission, a 4kW main motor, and a 4kW air-cooled hydraulic station. This setup supports a production speed of 15-16m/min, significantly boosting output efficiency and shortening manufacturing lead times.

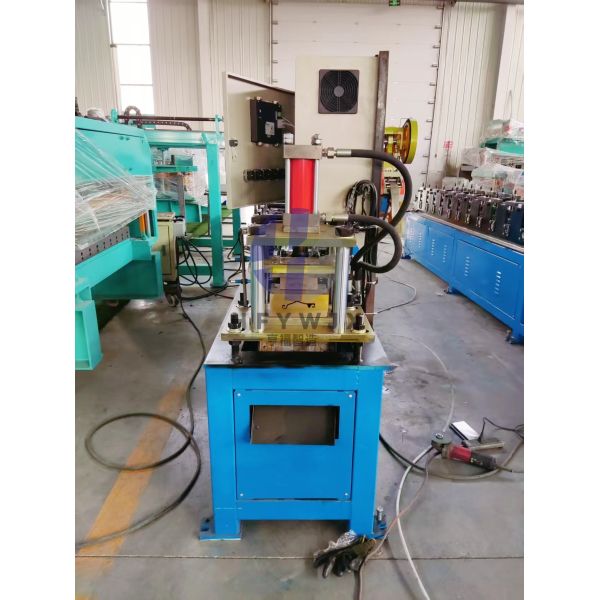

Precision and usability are central to its design. It uses post-forming double-blade shearing for clean, burr-free cuts, controlled by a Delta PLC and frequency converter to achieve a length tolerance of ≤1mm. Additional features like 35mm galvanized pull rods, a Type 4 cycloidal reducer, and multilingual support (Chinese/Russian) further enhance stability and ease of operation for global users.
Frequently Asked Questions
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
What are the available cutting methods?
Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
