Cable Ladder Roll Forming Machine - Fully Automatic Electrical Tray Manufacturing Equipment
The Automatic Mechanical Cable Tray High-Speed Metal Forming Machine delivers efficient and precise production of cable tray systems for electrical installations and infrastructure projects. By integrating multiple processes into a continuous production line, the machine ensures smooth material flow and consistent output, making it ideal for modern manufacturing environments.
A major highlight is its high-speed operation, which significantly increases production capacity without compromising quality. The carefully engineered roll forming system ensures accurate shaping at every stage, resulting in cable trays with uniform dimensions and a clean, professional finish that meets industry standards.
The machine offers excellent production versatility, accommodating different tray sizes and configurations to meet diverse project requirements. This flexibility allows businesses to respond quickly to customer demands and expand their product range without multiple machines, improving overall efficiency and competitiveness.
Dongguang Hengfu Roll Forming Machine Co., Ltd. has developed this machine with a focus on performance and long-term reliability. With extensive experience in roll forming technology, the company provides equipment that is easy to operate, stable in performance, and designed to minimize downtime.
Technical Specifications
| Model NO |
Cable tray forming machine |
| Condition |
New |
| Feed width |
200~1250mm |
| Molding process |
about 28 processes |
| Transmission method |
Chain wheel chain transmission |
| Spindle diameter |
Φ 70mm |
| Forming frame |
H400 steel welding |
| Electric control system |
PLC |
| Punching working method |
Punching with a punch press |
| Automatic Grade |
Automatic |
| Transport Package |
Container |
| Customized |
Customized |
| Origin |
Cangzhou, Hebei |
| Warranty |
1 year |

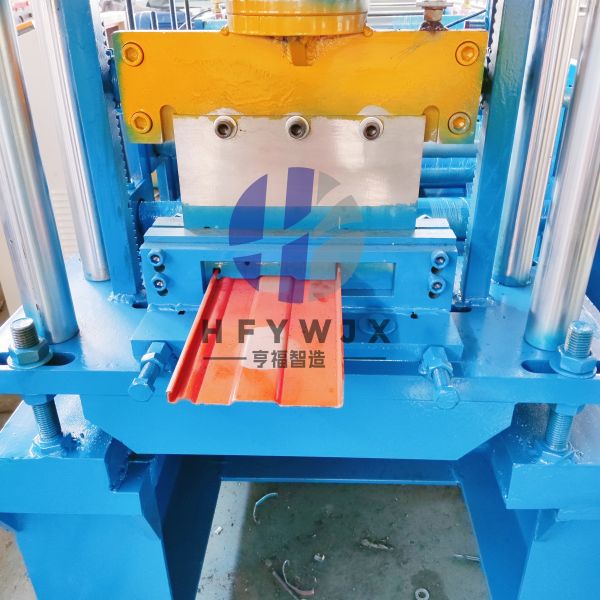

Product Gallery
Frequently Asked Questions
Does the machine require a foundation?
It simply requires a level concrete floor; no complex foundation is necessary.
Does the machine require disassembly for transport?
The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.
There are no professional maintenance personnel available locally; what should we do in the long run?
We provide lifetime remote video guidance; most issues do not require on-site repair.
Is the length of the discharge rack adjustable?
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
Are customers able to visit the factory to test the machine and observe its performance firsthand?
We welcome customers—or a designated third party—to visit our factory to inspect the machine and conduct trial production runs using their own materials.
