Hydraulic Cutting Cz Purlin Machine PLC Control System For High Efficiency Production

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Certification : CE, SGS

Customized : Customized

Condition : New

Control Type : Artificial

Automatic Grade : Automatic

Transmission Mode : 1.2-1.5-Inch Chain Drive

Cutting Material : Infinite Shear

Transport Package : Plastic Film & Steel Wire Fixed

Specification : 9300mm*1400mm*2000mm

Package Size : 930.00cm * 140.00cm * 200.00cm

Package Gross Weight : 6500.000kg

Contact Now

High-Strength Sturdy CZ Steel Equipment

CZ steel equipment is a cold-formed steel system for the steel structure industry, designed to produce C-type and Z-type steel structures. The finished products are C/Z-shaped steel purlins primarily used to support beams and wall beams in buildings, factories, and workshops.

As a single roll forming unit, this equipment can produce various specifications of CZ purlins. The system consists of passive loading, leveling device, punching device, forming host, hydraulic station, and computer control system for shearing after forming. Custom configurations are available to meet specific customer requirements.

Key Features
  • Equipped with 13 sets of CZ exchange modules
  • Complete CZ switching by manually rotating 180 degrees - no complex mold replacement required
  • Electric button adjustment for specification size changes
  • Free specification changes to meet different production needs
  • Enhanced production flexibility and efficiency
Equipment Benefits
  • Saves conversion time and reduces production waste
  • Improves production efficiency and reduces material loss
  • Convenient for processing both large and small orders
  • Handles mass production and small-batch customization
  • Fast and convenient conversion shortens production cycle
  • Easy operation reduces employee training requirements
  • Lowers labor costs and operational difficulty
  • Integrated design saves factory space
  • Multiple processes integrated into one unit
Technical Specifications
Model NO CZ steel equipment
Condition New
Color Blue or According to Customers' request
Cutter Type Hydraulic Cutting
Control System Controlled by PLC
Transmission Method Hydraulic Pressure
Automation Full-Automatic
Type of Driven Chain Transmission
Machine Frame 500H steel and 450H rigid welding
Shaft Material 45#
Specification 9300mm*1400mm*2000mm
Type Cold Roll forming machine
Customized Customized
Warranty 1 year
Place of Origin Hebei, China
Production Capacity 400/Set
Performance Parameters
Parameter Q195, Q235, Q345
Forming speed 25/min (according to the number of holes)
Cutting method Infinite shear system
Cutting blade material Cr12MoV
Roll material GCr15
Hydraulic station Hydraulic station power 22KW
Product Gallery

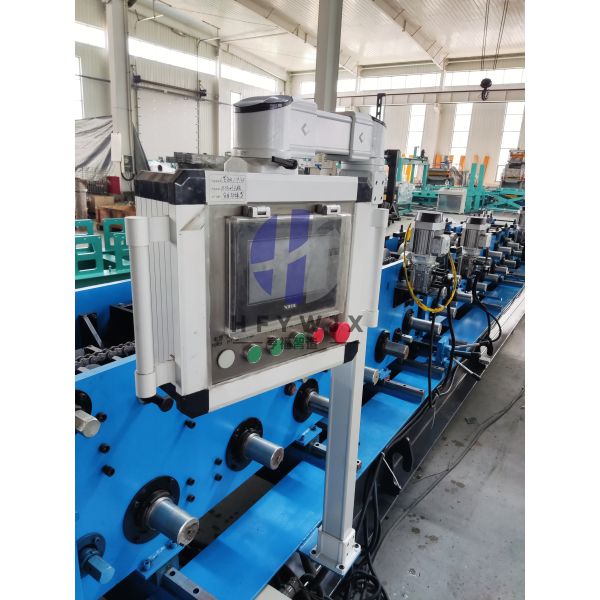

Hydraulic Cutting Cz Purlin Machine PLC Control System For High Efficiency Production Hydraulic Cutting Cz Purlin Machine PLC Control System For High Efficiency Production Hydraulic Cutting Cz Purlin Machine PLC Control System For High Efficiency Production Hydraulic Cutting Cz Purlin Machine PLC Control System For High Efficiency Production Hydraulic Cutting Cz Purlin Machine PLC Control System For High Efficiency Production
Frequently Asked Questions
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
What are the available cutting methods?
Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Hydraulic Cutting Cz Purlin Machine PLC Control System For High Efficiency Production
