Corrugated Sheet Roll Forming Machine With Intelligent PLC Control

  • 1
  • 2
  • 3

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Model NO. : Double layer roll forming machine

Certification : CE, SGS

Customized : Customized

Transmission Method : Electric

Transport Package : Plastic Film & Steel Wire Fixed

Origin : Dongguang, Cangzhou City, Hebei Province

Contact Now

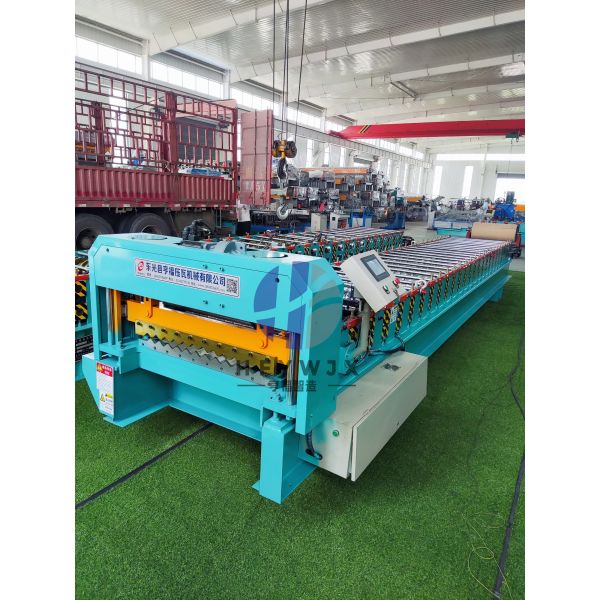

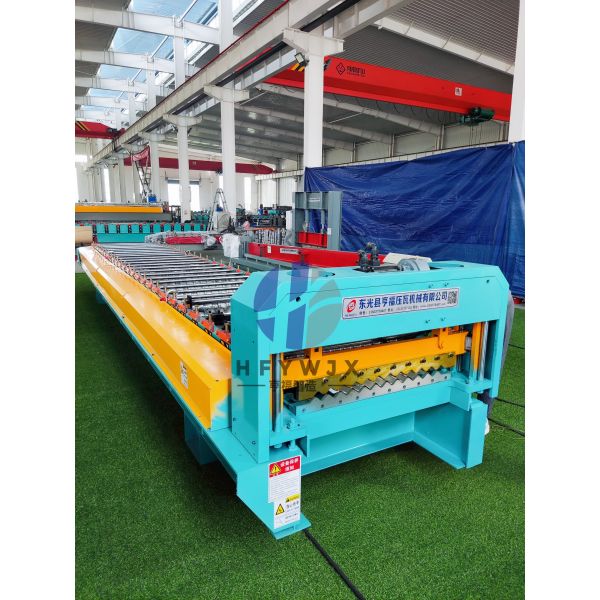

Corrugated Sheet Roll Forming Machine with Intelligent PLC Control
Product Overview

The Corrugated Galvanized Steel Step Tile Double Layer Roll Forming Machine is an advanced, space-saving solution designed for producing two different roofing profiles on a single machine. By integrating double-layer forming technology, it enables manufacturers to efficiently switch between corrugated sheets and step tiles, significantly improving production flexibility while reducing equipment investment.

Suitable for processing galvanized steel and color-coated steel, this machine delivers high-quality roofing panels widely used in industrial and residential construction.

Key Features
  • Robust Construction: Built with strong 300H steel frame and equipped with 13-11 forming stations for upper and lower layers, ensuring excellent structural stability and precise forming performance
  • Premium Components: Rollers made of high-grade 45# steel with chrome plating treatment provide superior wear resistance and ensure smooth, scratch-free sheet surfaces
  • Enhanced Durability: Φ70mm solid shaft enhances durability and guarantees stable operation even under continuous production conditions
  • Efficient Transmission: Chain-driven transmission system ensures synchronized rotation of all rollers and uniform force distribution during forming
  • High Production Speed: Forming speed of up to 35 meters per minute offers high production efficiency while maintaining consistent profile accuracy
  • Intelligent Control: PLC intelligent control system enables fully automated operation, allowing easy parameter setting and precise workflow monitoring
  • Precision Cutting: Equipped with hydraulic system and guide column shearing device for precise, clean cutting without damaging coating surfaces
Technical Specifications
Model NO Double layer roll forming machine
Condition New
Usage Roof
External Dimensions 6500mm x 1300mm x 1200mm
Machine Frame 300H steel frame
Number of Rolling Mill Sets 13-11 row molding
Roll Material 45# steel rough lathe fine lathe outer circle grinding and electroplating treatment
Spindle Material 45 steel
Raw Materials Galvanized steel plate, color steel plate
Pull Rod 35mm galvanized
Spindle Diameter Φ70mm (Solid shaft)
Type of Driven Chain drive
Forming Speed 0-35 M/min
Main Motor Power 7.5KW
Electric Control System PLC
Customized Customized
Origin Cangzhou, Hebei
Warranty 1 year
Product Gallery
Corrugated Sheet Roll Forming Machine With Intelligent PLC Control Corrugated Sheet Roll Forming Machine With Intelligent PLC Control Corrugated Sheet Roll Forming Machine With Intelligent PLC Control
Frequently Asked Questions
Q: Any other service?
A: We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
Q: What types of profiles can you produce?
A: Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.
Q: Can machines be customized according to our drawings?
A: Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
Q: What materials is this machine suitable for?
A: Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Q: What is the structure of the machine frame?
A: It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Additional Image
Corrugated Sheet Roll Forming Machine With Intelligent PLC Control
Manufacturer Information

Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this machine reflects strong engineering expertise and strict quality control standards. The company is recognized for its advanced R&D capabilities, high-precision manufacturing, and comprehensive after-sales service.

With advantages such as multifunctional design, stable performance, and long service life, this double-layer roll forming machine is a professional and cost-effective choice for customers seeking to expand production capacity and improve competitiveness in the roofing sheet industry.
