High Rigidity Long Service 1110 Glazed Tile Production Line
Designed and manufactured by Hebei Hengfu Pressing Machinery Manufacturing Co., Ltd., the 1110 glazed tile roll forming machine (Model YX24-222-1110) is engineered for processing 1250mm Q235 color steel and galvanized steel with thickness ranging from 0.3-0.5mm. This machine delivers stable performance and high forming precision for demanding industrial applications.
The robust construction features a 400H national standard steel frame and 16mm thick wall panels. Equipped with 16-21 rows of 45Cr rolls that undergo quenching, tempering, fine turning, and chrome plating processes, the machine ensures exceptional durability. The 80mm solid spindle and 11kW servo motor driven by gearbox provide strong rigidity and smooth operational performance.

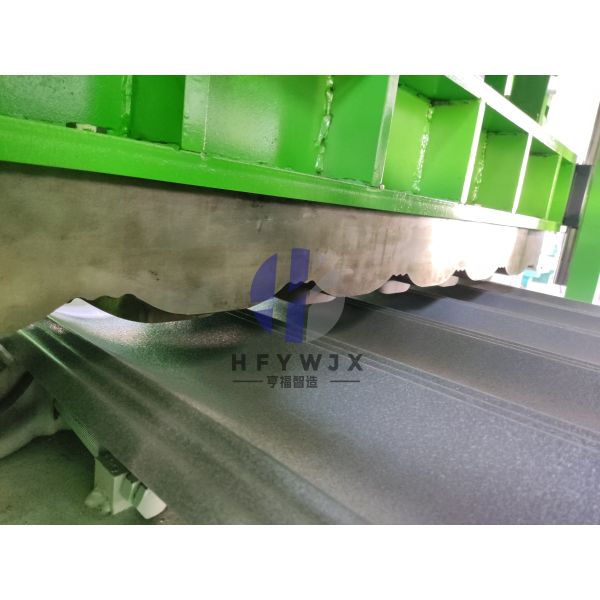

Advanced features include post-forming double linear guide electric shearing system with Cr12Mov quenched and finely ground tools for smooth cutting and low failure rates. The integrated PLC, frequency converter, touch screen, remote control, and alarm systems deliver precise control with positioning error ≤1mm.
The double hand-operated feeding frame with manual cutter facilitates easy and efficient operation. With a working speed of 4-12m/min, this production line is optimized for mass production requirements. It finds extensive application in antique buildings including factories, scenic areas, pavilions, hotels, and villas.
Technical Specifications
| Model |
1110 |
| Feeding Width |
1250 mm |
| Suitable Material |
Color steel sheet, Galvanized steel sheet |
| Material Standard |
Q235 |
| Material Thickness |
0.3-0.5 mm |
| Machine Frame |
400H standard steel |
| Wall Plate Thickness |
16 mm |
| Forming Roll Stations |
16-21 rows |
| Roll Material |
45Cr (quenched / tempered / finely turned / chrome plated) |
| Main Shaft |
Φ80 mm solid shaft |
| Main Motor |
11 kW servo motor |
| Transmission |
Gear box drive |
| Production Speed |
4-12 m/min |
| Cutting Type |
Post-forming cutting, double linear guide electric shearing |
Product Gallery
Frequently Asked Questions
Is the length of the discharge rack adjustable?
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
What's the delivery time?
Normally it takes about 45 days.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
