Customized Profile Downpipe Forming Machine
The automatic downpipe forming machine is designed for producing metal downpipes used in building roof drainage systems. It efficiently manufactures round, square, and rectangular pipes suitable for various construction projects.
Built with robust construction, the machine features a 400H steel frame and 16mm thick wall panels for enhanced stability. The 24 sets of forming rollers are precision-processed and hard chrome-plated, ensuring smooth product surfaces and accurate dimensions.
The control system utilizes Delta PLC with Chinese and Russian language support, providing simple and intuitive operation. The complete production line operates automatically, significantly improving efficiency while reducing labor costs.
This versatile machine supports processing various metal materials and can be customized to meet specific customer requirements. With its stable performance and high durability, it serves as an ideal solution for manufacturers in construction and building industries.
Technical Specifications
| Product Name |
Downpipe Forming Machine |
| Overall Dimensions |
Approx. 10500mm x 1000mm x 1500mm |
| Machine Frame |
400H steel frame |
| Wall Panels |
16mm thick |
| Number of Roll Sets |
24 main rolls |
| Roll Material |
45# steel, rough-machined, precision-machined, and electroplated with hard chrome plating |
| Spindle Material |
45# Steel |
| PLC |
Delta, Chinese and Russian languages |

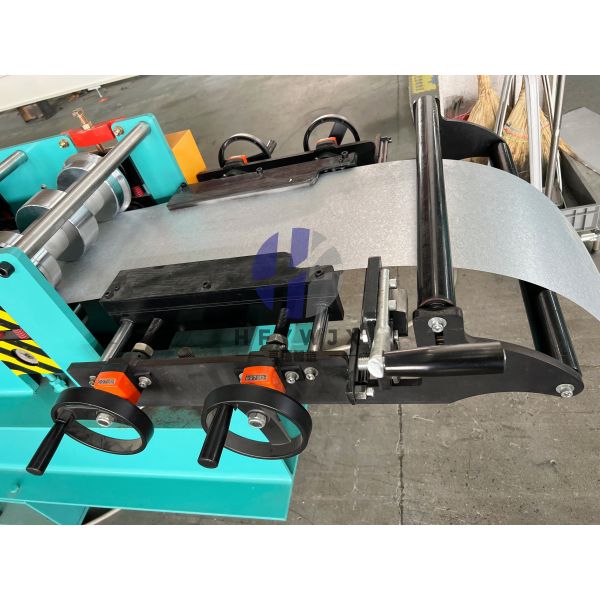

Product Gallery
Frequently Asked Questions
Does the machine require disassembly for transport?
The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.
There are no professional maintenance personnel available locally; what should we do in the long run?
We provide lifetime remote video guidance; most issues do not require on-site repair.
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
Is the length of the discharge rack adjustable?
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
